Stainless Steel Flexible Shower Hose
video

Stainless Steel Flexible Shower Hose

1. Part name: Stainless steel flexible shower hose
2. Material: Stainless steel AISI304
3. Suitable for all kinds of shower connection
Send Inquiry

Description

Technical Parameters

The surface of the stainless steel flexible shower hose is made of stainless steel sheet, and the surface is treated by electric polishing process, bright color, more corrosion resistant.

Stainless steel flexible shower hose has good elasticity, high hardness, corrosion resistance, high gloss, feel comfortable and other advantages, suitable for all kinds of spray shower water connection.


Type: double lock shower hose

double lock shower hose(001)

Material

A-Nut——Brass

B-Washer——EPDM

C-Steel sleeve——SUS304

D-Inner pipe——PVC 、EPDM

E-Hose body——Brass or SUS304


Technical Specifications

Dimension ID(mm)

DN10

Dimension OD(mm)

Φ16

Working Pressure

290PSI

Working Temperture

70℃

Length(cm)

100~200


Type: double interlock shower hose

double interlock shower hose

Material

A-Nut——Brass

B-Washer——EPDM

C-Steel sleeve——SUS304

D-Inner pipe——PVC 、EPDM

E-Hose body——Brass or SUS304


Technical Specifications

Dimension ID(mm)

DN11

Dimension OD(mm)

Φ17

Working Pressure

290PSI

Working Temperture

70℃

Length(cm)

100~200


Type: flexible stainless steel shower hose

stainless steel flexible shower hose

Material

A-Nut——Brass or SUS304

B-Rubber ring——EPDM

C-Connetor——Brass or SUS304

D-Plastic ring——Plastic

E-Inner pipe——PVC 、EPDM、PEX

F-Hose body——Brass or SUS304

G-Steel sleeve——Brass or SUS304


Technical Specifications

Outer Diameter(mm)

13~17mm

Working Pressure(Mpa)

0.7Mpa

Bursting Pressure(Mpa)

2.0Mpa

Working Temperture

70℃

Length(cm)

100~200

0.3MPa pressure water flow

>0.42L/S

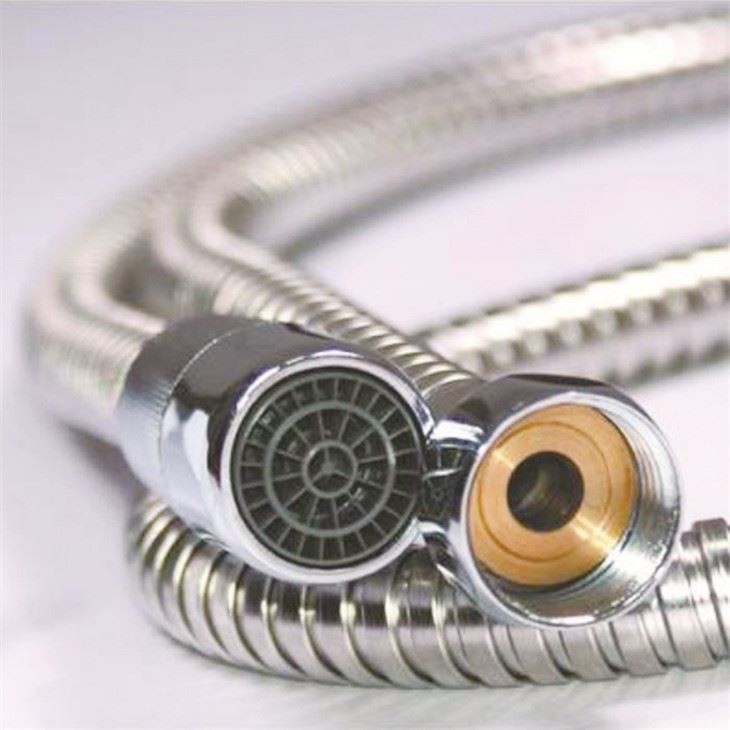

Type: shower hose and sprayer

shower hose and sprayer

Material

A-Nut——Brass or SUS304

B-Connetor——Brass or SUS304

C-Rubber ring——EPDM

D-Plastic ring——Plastic

E-Inner pipe——PVC 、EPDM、PEX

F-Steel sleeve——Brass or SUS304

G-Hose body——Brass or SUS304


Technical Specifications

Outer Diameter(mm)

13~17mm

Working Pressure(Mpa)

0.7Mpa

Bursting Pressure(Mpa)

2.0Mpa

Working Temperture

70℃

Length(cm)

100~200

0.3MPa pressure water flow

>0.42L/S


Type: telescopic shower hose

telescopic shower hose

Material

A-Nut——Brass

B-Connetor——Brass

C-C-O- ring——EPDM

D-Plastic ring——Plastic

E-Inner pipe——EPDM

F-Steel sleeve——Brass

G-Hose body——Brass


Technical Specifications

Outer Diameter(mm)

13~17mm

Working Pressure(Mpa)

0.7Mpa

Bursting Pressure(Mpa)

2.0Mpa

Working Temperture

70℃

Length(cm)

100~200

0.3MPa pressure water flow

>0.42L/S


Type: Stainless steel Spring Shower Hose

Spring Shower Hose

Material

A-Nut——Brass or SUS304

B-Inner core——Brass or SUS304

C-Rubber ring——EPDM

D-Plastic ring——Plastic

E-Inner pipe——EPDM、PVC、PEX

F-Hose body——SUS304

G-Steel sleeve——Brass or SUS304


Technical Specifications

Dimension ID(mm)

DN7

Dimension OD(mm)

Φ14

Working Pressure

200PSI

Working Temperture

70℃

Length(cm)

100~200


Type: Gold double lock shower hose

gold double lock shower hose

Material

A-Nut——Brass

B-Connector——Brass

C-Plastic ring——Plastic

D-Inner pipe——EPDM、PVC、PEX

F-Hose body——Brass or SUS304

G-Steel sleeve——Brass or SUS304


Technical Specifications

Dimension ID(mm)

DN6 DN7 DN10 DN11

Dimension OD(mm)

Φ14Φ16Φ17

Working Pressure

290PSI

Working Temperture

70℃

Length(cm)

100~200


Type: stainless steel handheld shower hose

stainless steel handheld shower hose

Material

A-Nut——Stainless steel AISI304

B-Connector——Stainless steel AISI304

C-Washer——EPDM

D-Plastic——Plastic

E-Inner pipe——EPDM、PVC、PEX

F-Hose body——Stainless steel AISI304


Technical Specifications

Dimension ID(mm)

DN6 DN7 DN10 DN11

Dimension OD(mm)

Φ14Φ16Φ17

Working Pressure

290PSI

Working Temperture

70℃

Length(cm)

100~200
